DUOTONE TRUST BAR 2023

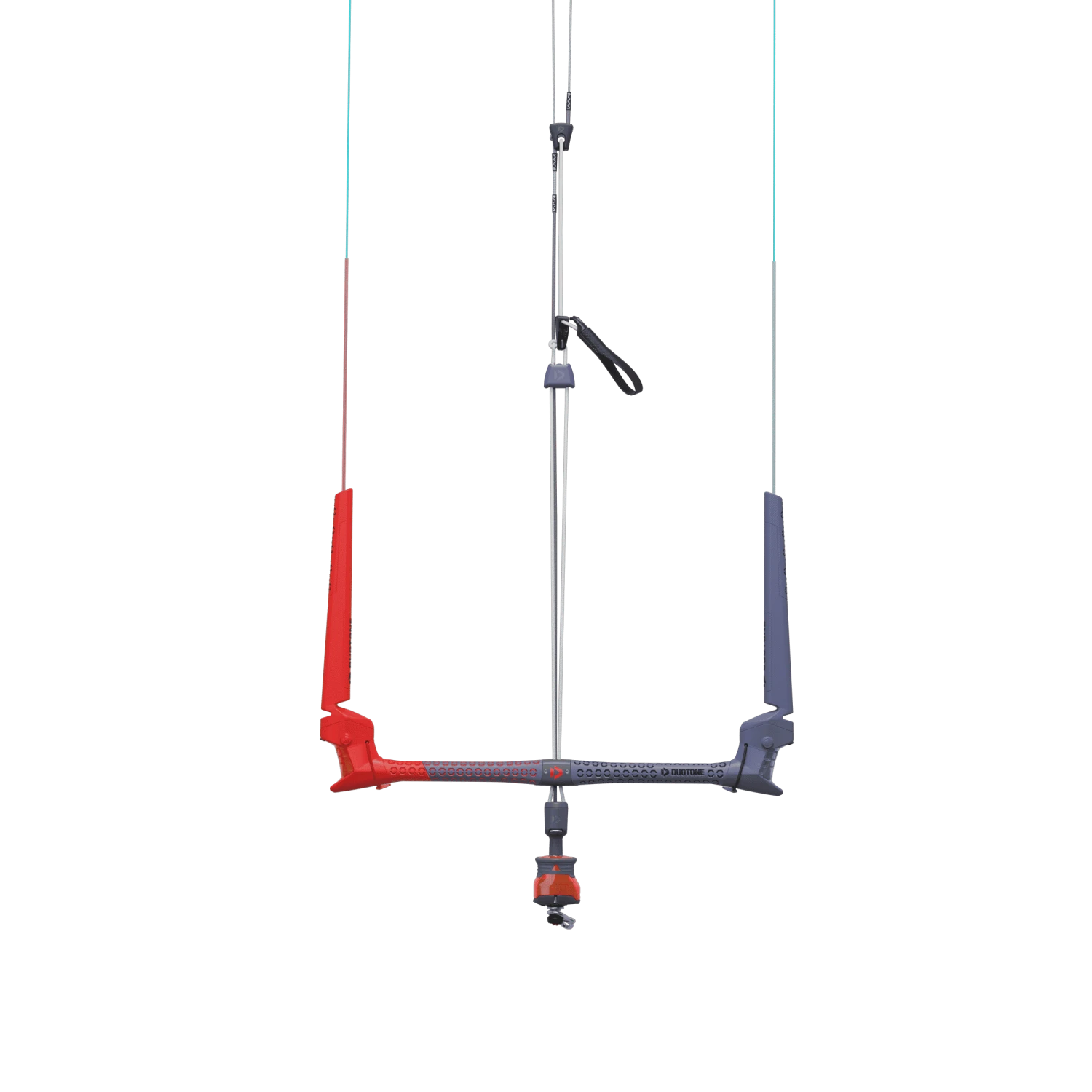

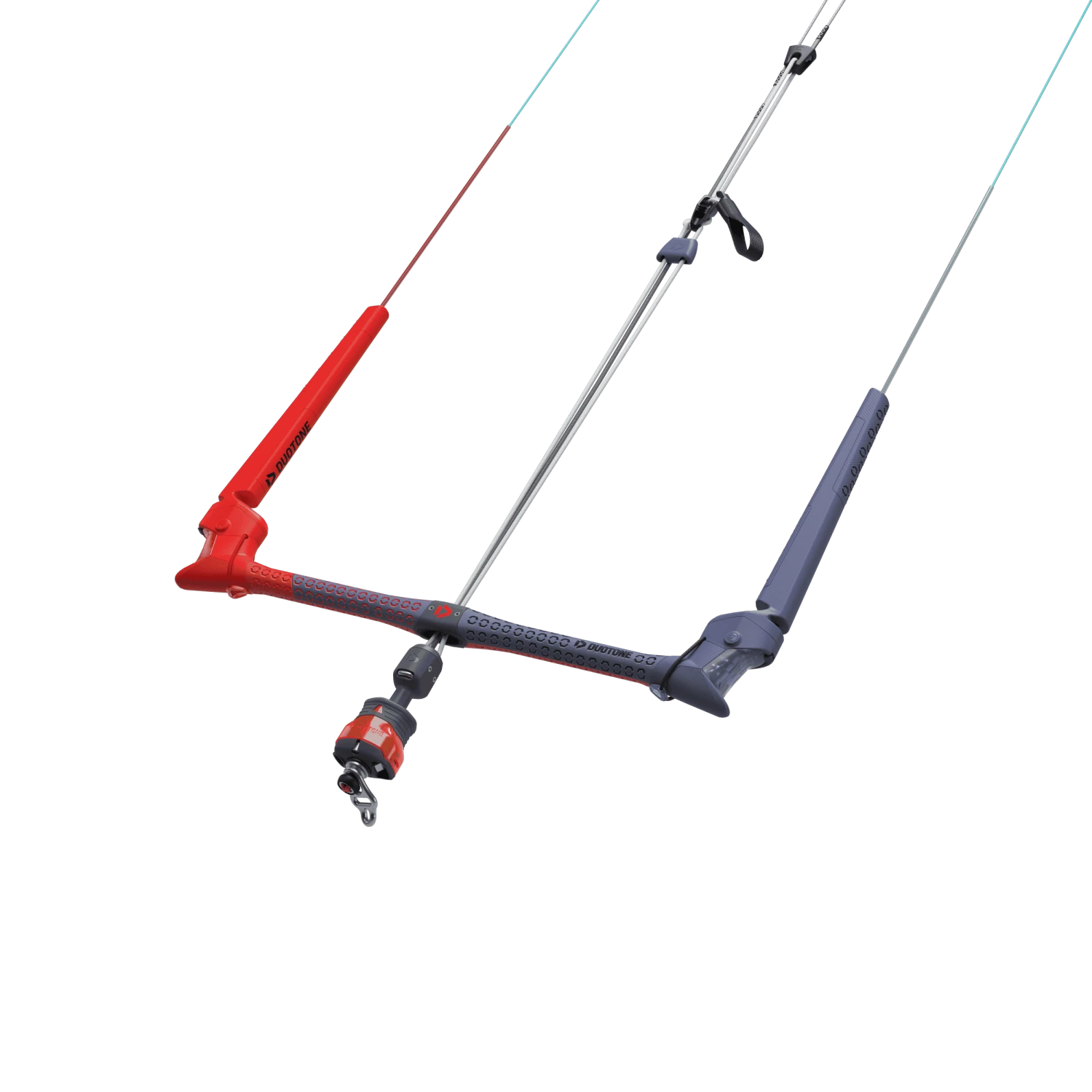

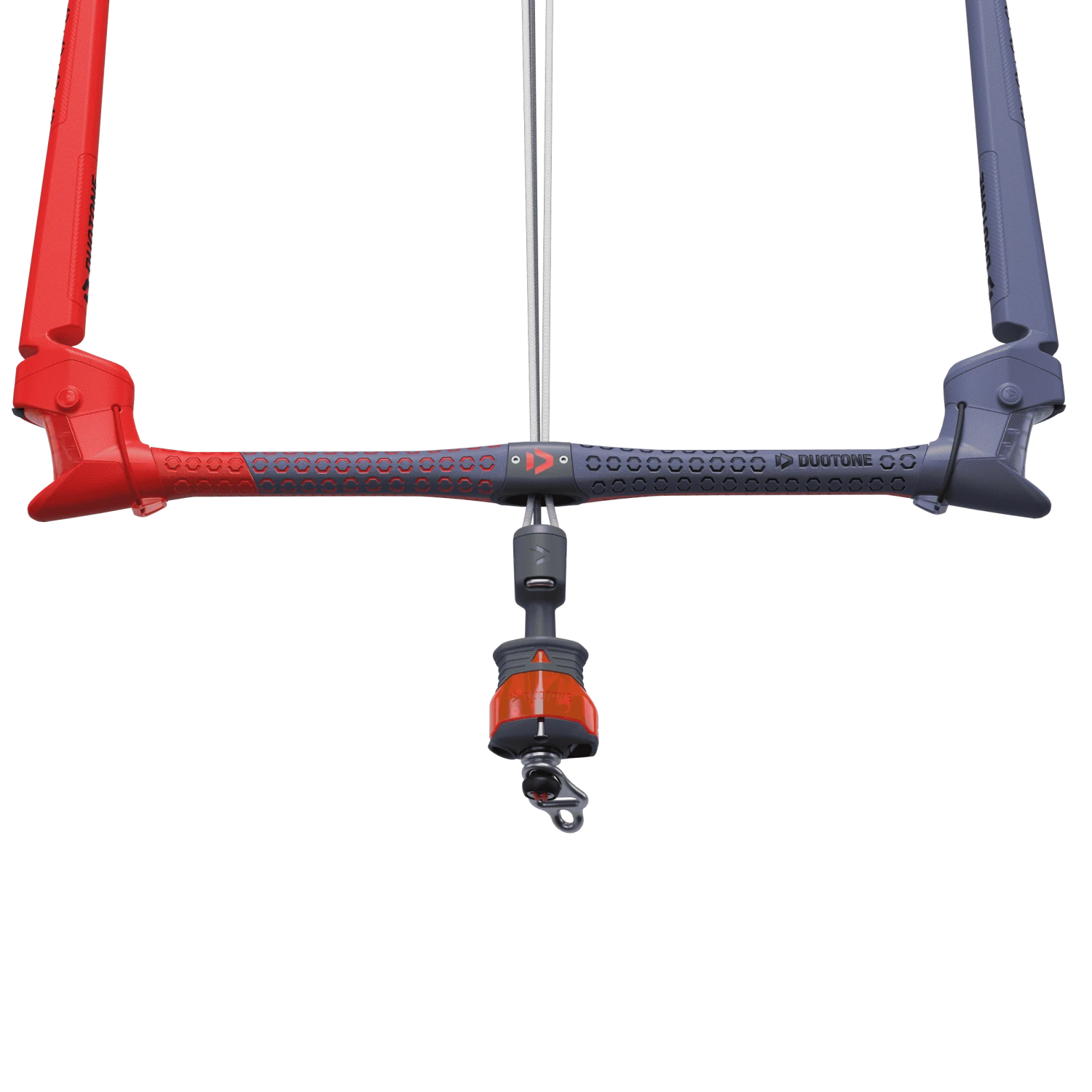

The Trust Bar has been the go-to control system for riders who prefer the traditional depower rope and cleat system, but there is nothing traditional about the new 2023 Trust Bar! Instead, it’s packed with the latest technologies, including the new Iron Heart VI Click-In Safety System and FLITE99 lines. This is the only bar you will ever need, as the bar width and line lengths can easily be adjusted to suit your kite. The bar is adjustable between 42 and 49cm with 22m lines with 2m extensions.

DUOTONE TRUST BAR 2023 FEATURES

IRON HEART VI – TRUST BAR

The new Iron Heart VI features a simple Click-In Safety System including an optical control function that allows you to reconnect the chicken loop as easily as you clip in your seat belt plus being able to check the green marking, to ensure the system is closed properly. Due to a ball bearing the Click Bar has an automatic untwist function.

ROTO HEAD

The Roto Head lets you to untangle the lines after a jump or a kiteloop while you are riding. Made from an extremely durable plastic construction where no corrosion is possible, the Roto Head comes with two grub screws making it easy and fast to change the depower line. Simply use an FCS fin key to remove the screws and change the depower line.

PLASTIC FITTED CENTRE HOLE

The exchangeable insert for the centre hole is made of plastic to minimize wear on the depower line. The material we use is resistant to abrasion, and will cause much less damage, if sand is present, to the line itself.

VARIO CLEAT AND SLIDING STOPPER

The Vario Cleat and Sliding Stopper enable a quick and easy adjustment of the depower stroke. Adjustable Vario Cleat with new Adjuster Clip to increase safety and comfort. Especially interesting for smaller riders who have problems reaching the bar in the regular setting. The height of the Vario Cleat and Sliding Stopper can be easily adjusted to suit personal preferences. The reduced size combined with the smaller Vario Cleat accounts for 12 % more depower area. The 5th line channel reduces the risk of the 5th line getting tangled considerably.

WINDING POSTS

The Winding Posts are made of a fully moulded fibreglass reinforced Polyamide construction, which offers an incredibly lightweight solution with increased stiffness. In addition to this, there is a moulded EVA cushioning to ensure maximum comfort for the rider. The Winding Posts feature an integrated backline adjustment, which allows the rider to trim the rear lines when needed.

ATTENTION

Never ride without the cover. It prevents the knot of the leader line from slipping out of its housing.

INTEGRATED EVA FLOATER FLIP – FLOP FUNCTION

The moulded EVA floater is fully integrated into the winding posts to offer a seamless connection, which gives better protection to the lines and the rider. The integration of the EVA floater also avoids line tangling and gives better overall stiffness between the bar and lines. To achieve better and more direct feedback on the thumb, we added a push pin on the outside of the winding post for easy operation. The Flip-Flop function allows you to switch between a 53 cm and 46 cm bar width (M / L bar) and 49 cm and 42 cm bar width (S / M bar) with just one click. This makes the procedure of changing the bar set up far simpler.

csm_Bildschirmfoto_2022-08-31_um_20.30.37_3aa705c8e4

DEPOWER & SAFETY BUNGEE LINE

The new depower line has been exclusively designed by Robline for Duotone, featuring a new, highly durable Dyneema sleeving that minimizes wear and delivers the best performance and feeling.

STICKY & ERGONOMIC BAR GRIP

A small diameter of the bar allows a very thick EVA bar grip. This offers ideal control and comfort.

V-DISTRIBUTOR III

The new V-Distributor III can be adjusted easily, allowing you to set the front line to split quickly. It can also be removed entirely, very easily, so you can have a very low V. This makes the Click Bar compatible with most kites on the market.

VIDEOS: 2023 DUOTONE TRUST BAR

CHICKEN LOOP OPTIONS: SOLD SEPARATELY

LINE LENGTH ADVISOR

The length of Duotone flying lines can make a huge difference to the way a kite flies. Different styles of riding, different kite models or the kite size are influencing factors that require different line length. In order to achieve maximum comfort and to receive the best performance of a kite, it is essential to match the kite and the rider’s style of riding to the correct line length!

19 M – 70% HANDLING / 30% POWER

Fast and reactive turning
For extreme Freestyle, Wakestyle and waves
Tight, super fast and hard kite loops
Narrower bar width

Size	S/M 12-24, S/M 22-24
